895SW D. 3
4 flute end mill regular version with variable helix and unequal flute spacing
895SW D. 3
4 flute end mill regular version with variable helix and unequal flute spacing

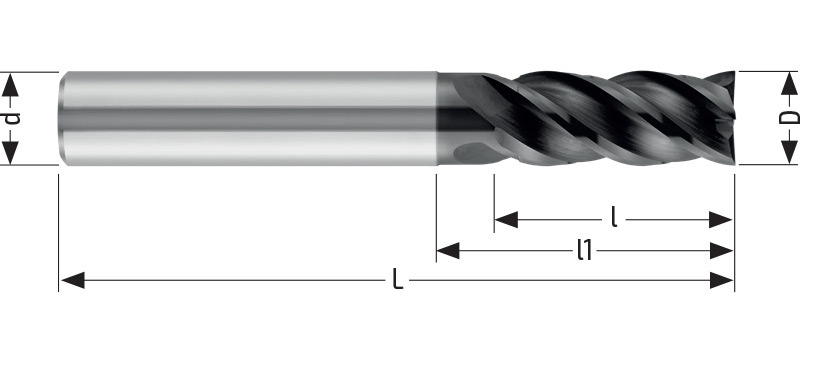

Details
D
Diameter of cutting edge
3,00 h10
d
Shank Diameter
6,00 h6
L
Overall Length
57
l
Cutting length
8,00
45°
Chamfering
0,05 '+0,05/+0
Z
Number of Flutes
4
Shank ref.
Shank references standard
HB
Coating
Balinit® Alcrona
Materials
Steel < 800 n/mm²
Steel < 1000 n/mm²
Steel < 1300 n/mm²
Grey cast iron
Ferritic/Martensitic steel
Austenitic steel
PH Duplex
Titanium
Working Parameters
Select a machining/material combination to display the relevant machining parameters. Advanced users can change the value of Vc within the defined value range and the value of Ae when available.
