129

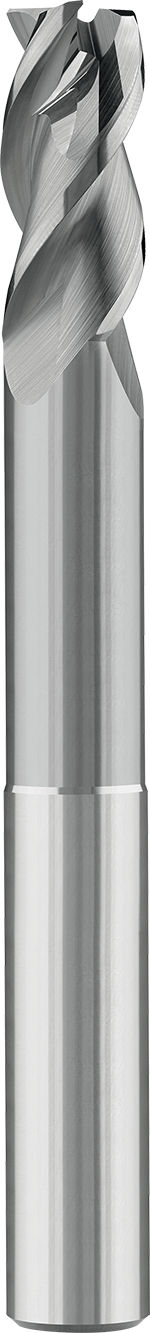

3 flute end mill, long version with unequal flute spacing
HMA
HM0
129

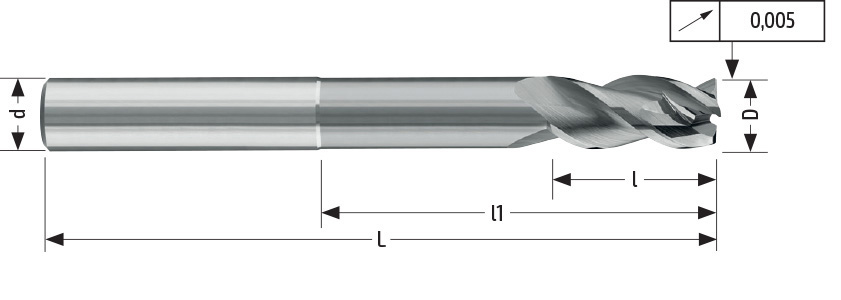

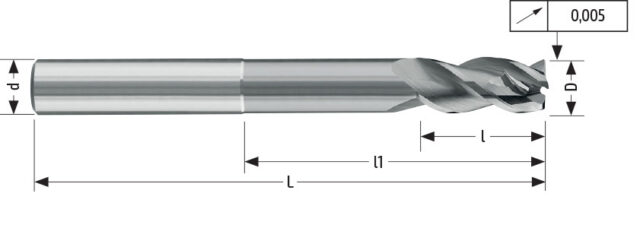

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| D h6 | d h6 | L | l | l1 | a | 45° | Z | Shank ref. | Coatings | Code | Order | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10,00 | 10,00 | 104 | 22,00 | 55,0 | 0,15 | 0,20 | 3 | HA | AluSpeed® | HMA129100 | ||
| 12,00 | 12,00 | 110 | 26,00 | 64,0 | 0,20 | 0,25 | 3 | HA | AluSpeed® | HMA129120 | ||
| 16,00 | 16,00 | 130 | 32,00 | 75,0 | 0,20 | 0,30 | 3 | HA | AluSpeed® | HMA129160 | ||
| 10,00 | 10,00 | 104 | 22,00 | 55,0 | 0,15 | 0,20 | 3 | HA | Uncoated | HM0129100 | ||
| 12,00 | 12,00 | 110 | 26,00 | 64,0 | 0,20 | 0,25 | 3 | HA | Uncoated | HM0129120 | ||
| 16,00 | 16,00 | 130 | 32,00 | 75,0 | 0,20 | 0,30 | 3 | HA | Uncoated | HM0129160 |
