740
Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :

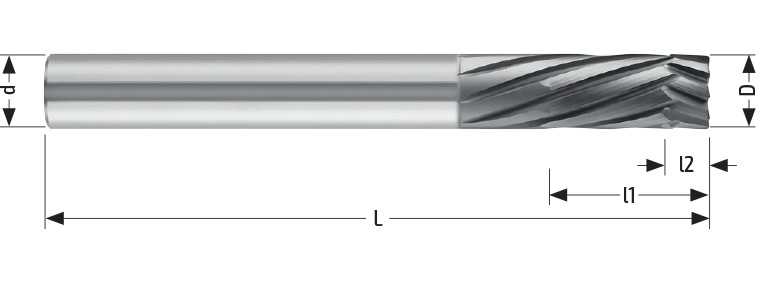

| D h10 | d h6 | L | l | l1 ap1 | l2 ap2 | Cr/r | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6,00 | 6,00 | 64 | 12,00 | 12,0 | 3,0 | 0,50 | 4 | HA | Diamond | HMD740060 | ||
| 6,35 | 6,35 | 64 | 13,00 | 13,0 | 3,2 | 0,40 | 4 | HA | Diamond | HMD740063 | ||
| 8,00 | 8,00 | 78 | 20,00 | 20,0 | 4,0 | 0,50 | 6 | HA | Diamond | HMD740080 | ||
| 9,53 | 9,53 | 78 | 19,00 | 19,0 | 4,8 | 0,40 | 7 | HA | Diamond | HMD740095 | ||
| 10,00 | 10,00 | 85 | 20,00 | 20,0 | 5,0 | 0,50 | 7 | HA | Diamond | HMD740100 | ||
| 12,00 | 12,00 | 104 | 24,00 | 24,0 | 6,0 | 0,50 | 9 | HA | Diamond | HMD740120 | ||
| 12,70 | 12,70 | 104 | 26,00 | 26,0 | 6,4 | 0,40 | 9 | HA | Diamond | HMD740127 |
