760
End mill with continuous cutting geometry
760

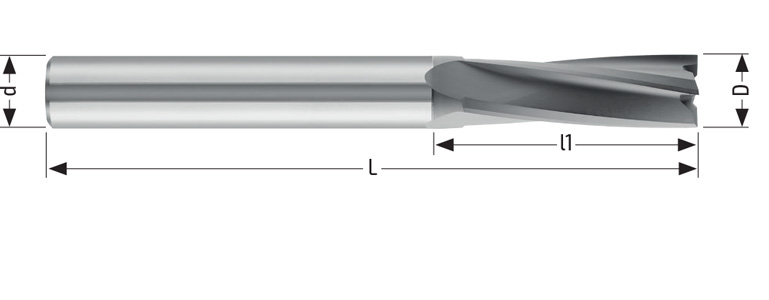

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| D h10 | d h6 | L | l | Cr/r | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|---|
| 6,00 | 6,00 | 64 | 18,00 | 0,20 | 4 | HA | Diamond | HMD760060 | ||
| 8,00 | 8,00 | 78 | 24,00 | 0,20 | 4 | HA | Diamond | HMD760080 | ||
| 10,00 | 10,00 | 78 | 30,00 | 0,20 | 4 | HA | Diamond | HMD760100 | ||
| 12,00 | 12,00 | 104 | 36,00 | 0,20 | 4 | HA | Diamond | HMD760120 | ||
| 16,00 | 16,00 | 104 | 48,00 | 0,20 | 4 | HA | Diamond | HMD760160 | ||
| 20,00 | 20,00 | 134 | 60,00 | 0,20 | 4 | HA | Diamond | HMD760200 |
