145
Finishing end mill, extra-long version
145

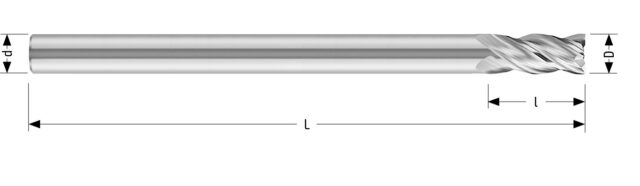

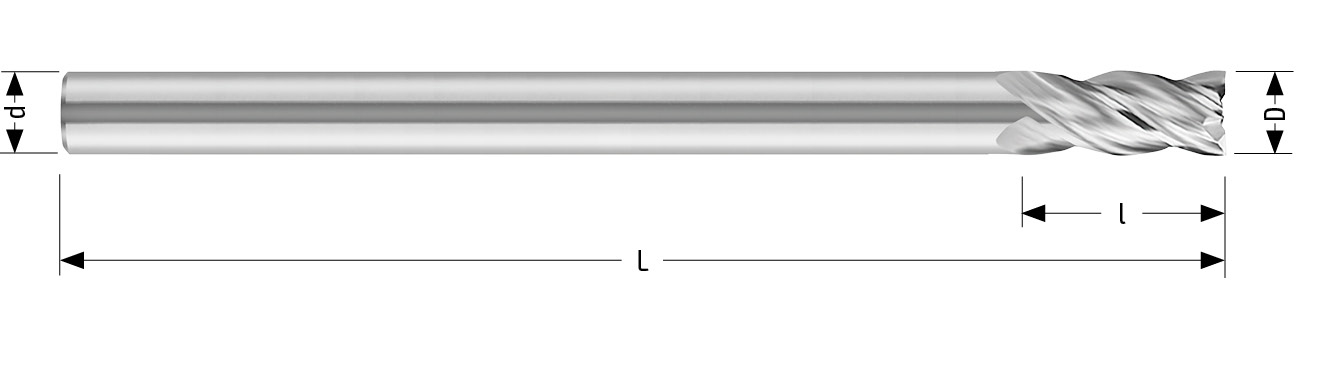

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| D k10 | d | L | l | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|
| 6,00 | 6,00 | 180 | 25,00 | 4 | FORMA | Uncoated | SIL145006 | ||
| 8,00 | 8,00 | 180 | 25,00 | 4 | FORMA | Uncoated | SIL145008 | ||
| 10,00 | 10,00 | 200 | 30,00 | 4 | FORMA | Uncoated | SIL145010 | ||
| 12,00 | 12,00 | 200 | 30,00 | 4 | FORMA | Uncoated | SIL145012 | ||
| 14,00 | 14,00 | 200 | 35,00 | 4 | FORMA | Uncoated | SIL145014 | ||
| 16,00 | 16,00 | 200 | 35,00 | 4 | FORMA | Uncoated | SIL145016 | ||
| 20,00 | 20,00 | 200 | 35,00 | 4 | FORMA | Uncoated | SIL145020 | ||
| 25,00 | 25,00 | 200 | 40,00 | 4 | FORMA | Uncoated | SIL145025 |
