174
Finishing end mill, long version








174

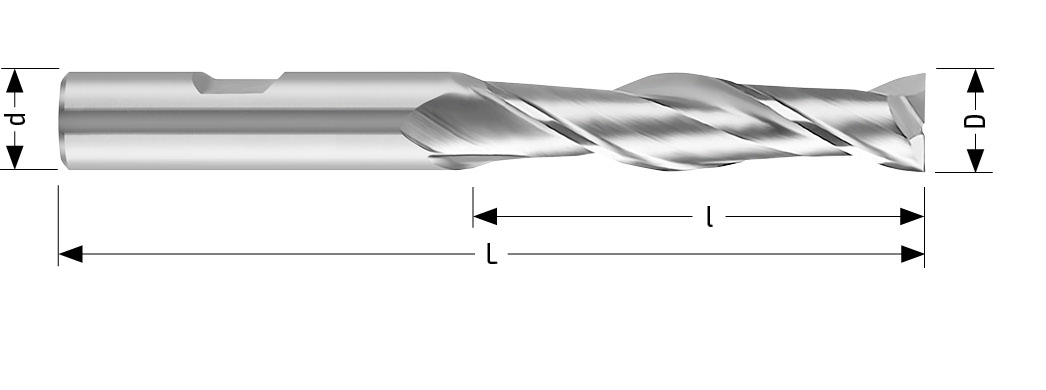

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
D k10 | d | L | l | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
---|---|---|---|---|---|---|---|---|---|
6,00 | 6,00 | 68 | 24,00 | 2 | FORMB | Uncoated | SIL174006 | ||
8,00 | 10,00 | 88 | 38,00 | 2 | FORMB | Uncoated | SIL174008 | ||
10,00 | 10,00 | 95 | 45,00 | 2 | FORMB | Uncoated | SIL174010 | ||
12,00 | 12,00 | 110 | 53,00 | 2 | FORMB | Uncoated | SIL174012 | ||
14,00 | 12,00 | 110 | 53,00 | 2 | FORMB | Uncoated | SIL174014 | ||
16,00 | 16,00 | 123 | 63,00 | 2 | FORMB | Uncoated | SIL174016 | ||
18,00 | 16,00 | 123 | 63,00 | 2 | FORMB | Uncoated | SIL174018 | ||
20,00 | 20,00 | 141 | 75,00 | 2 | FORMB | Uncoated | SIL174020 | ||
25,00 | 25,00 | 166 | 90,00 | 2 | FORMB | Uncoated | SIL174025 | ||
6,00 | 6,00 | 68 | 24,00 | 2 | FORMB | Alcrona | NIG174006 | ||
8,00 | 10,00 | 88 | 38,00 | 2 | FORMB | Alcrona | NIG174008 | ||
10,00 | 10,00 | 95 | 45,00 | 2 | FORMB | Alcrona | NIG174010 | ||
12,00 | 12,00 | 110 | 53,00 | 2 | FORMB | Alcrona | NIG174012 | ||
14,00 | 12,00 | 110 | 53,00 | 2 | FORMB | Alcrona | NIG174014 | ||
16,00 | 16,00 | 123 | 63,00 | 2 | FORMB | Alcrona | NIG174016 | ||
18,00 | 16,00 | 123 | 63,00 | 2 | FORMB | Alcrona | NIG174018 | ||
20,00 | 20,00 | 141 | 75,00 | 2 | FORMB | Alcrona | NIG174020 | ||
25,00 | 25,00 | 166 | 90,00 | 2 | FORMB | Alcrona | NIG174025 |
