180
Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :

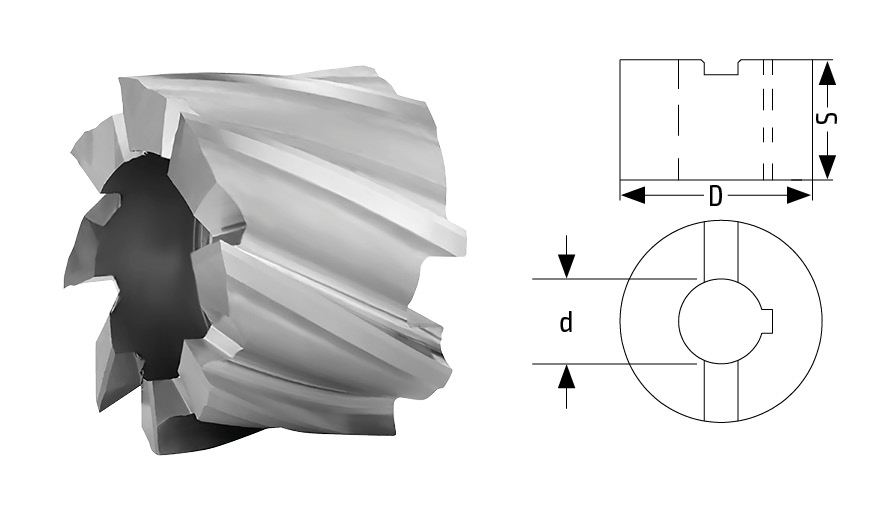

| D k10 | d | S k12 | d 0,00000 | Norm | Z |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|
| 40,00 | 16,00 | 32,0 | 16,0 | DIN 1880 | 6 | Uncoated | SIL180040 | ||
| 40,00 | 16,00 | 40,0 | 16,0 | DIN 1880 DIN 84 | 6 | Uncoated | SIL180404 | ||
| 50,00 | 22,00 | 36,0 | 22,0 | DIN 1880 | 8 | Uncoated | SIL180050 | ||
| 50,00 | 22,00 | 50,0 | 22,0 | DIN 1880 DIN 84 | 8 | Uncoated | SIL180505 | ||
| 60,00 | 27,00 | 60,0 | 27,0 | DIN 1880 DIN 84 | 8 | Uncoated | SIL180606 | ||
| 63,00 | 27,00 | 40,0 | 27,0 | DIN 1880 | 8 | Uncoated | SIL180063 | ||
| 75,00 | 27,00 | 75,0 | 27,0 | DIN 1880 DIN 84 | 8 | Uncoated | SIL180757 | ||
| 80,00 | 27,00 | 45,0 | 27,0 | DIN 1880 | 10 | Uncoated | SIL180080 | ||
| 100,00 | 27,00 | 50,0 | 32,0 | DIN 1880 | 10 | Uncoated | SIL180100 | ||
| 125,00 | 32,00 | 56,0 | 40,0 | DIN 1880 DIN 84 | 12 | Uncoated | SIL180125 | ||
| 160,00 | 40,00 | 63,0 | 50,0 | DIN 1880 DIN 84 | 14 | Uncoated | SIL180160 | ||
| 40,00 | 16,00 | 32,0 | 16,0 | DIN 1880 DIN 84 | 6 | Alcrona | NIG180040 | ||
| 40,00 | 16,00 | 40,0 | 16,0 | DIN 1880 DIN 84 | 6 | Alcrona | NIG180404 | ||
| 50,00 | 22,00 | 36,0 | 22,0 | DIN 1880 DIN 84 | 8 | Alcrona | NIG180050 | ||
| 50,00 | 22,00 | 50,0 | 22,0 | DIN 1880 DIN 84 | 8 | Alcrona | NIG180505 | ||
| 60,00 | 27,00 | 60,0 | 27,0 | DIN 1880 DIN 84 | 8 | Alcrona | NIG180606 | ||
| 63,00 | 27,00 | 40,0 | 27,0 | DIN 1880 DIN 84 | 8 | Alcrona | NIG180063 | ||
| 75,00 | 27,00 | 75,0 | 27,0 | DIN 1880 DIN 84 | 8 | Alcrona | NIG180757 | ||
| 80,00 | 27,00 | 45,0 | 27,0 | DIN 1880 DIN 84 | 10 | Alcrona | NIG180080 | ||
| 100,00 | 27,00 | 50,0 | 32,0 | DIN 1880 DIN 84 | 10 | Alcrona | NIG180100 | ||
| 125,00 | 32,00 | 56,0 | 40,0 | DIN 1880 | 12 | Alcrona | NIG180125 | ||
| 160,00 | 40,00 | 63,0 | 50,0 | DIN 1880 DIN 84 | 14 | Alcrona | NIG180160 |
