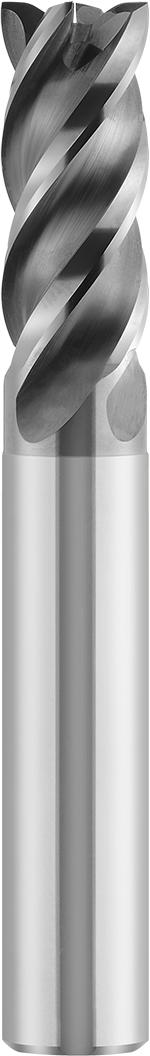

113EVR
4 flute end mill with variable helix and unequal flute spacing for roughing and finishing for heavy material removal and steep ramp milling
113EVR

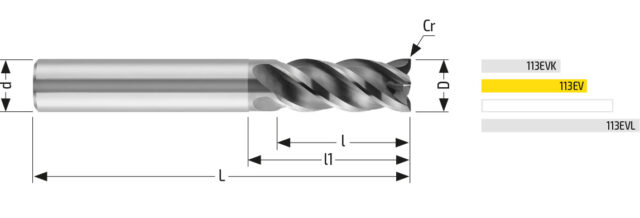

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| D h10 | d h6 | L | l | l1 | a | α | Cr/r | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4,00 | 6,00 | 57 | 11,00 | 16,0 | 0,15 | 20 | 0,10 | 4 | HA | Alcrona | HMG113040EVR | ||
| 6,00 | 6,00 | 57 | 13,00 | 20,0 | 0,15 | — | 0,10 | 4 | HA | Alcrona | HMG113060EVR | ||
| 8,00 | 8,00 | 63 | 19,00 | 25,0 | 0,15 | — | 0,15 | 4 | HA | Alcrona | HMG113080EVR | ||
| 10,00 | 10,00 | 72 | 22,00 | 30,0 | 0,15 | — | 0,20 | 4 | HA | Alcrona | HMG113100EVR | ||
| 12,00 | 12,00 | 83 | 26,00 | 36,0 | 0,20 | — | 0,20 | 4 | HA | Alcrona | HMG113120EVR | ||
| 16,00 | 16,00 | 92 | 32,00 | 42,0 | 0,20 | — | 0,20 | 4 | HA | Alcrona | HMG113160EVR |
