1192
5 flute end mill 2xD with unequal flute spacing for dynamic milling
1192

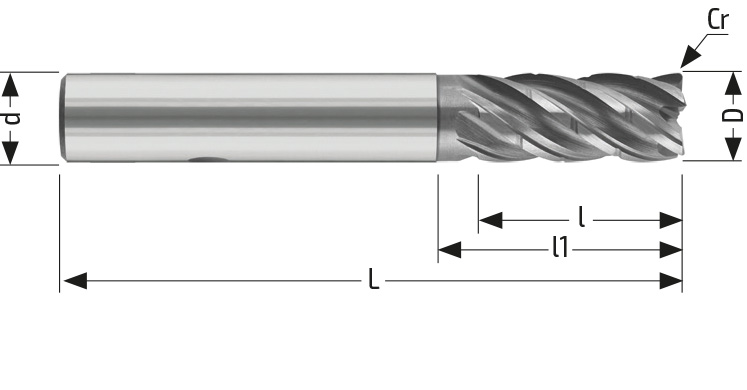

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| D h10 | d h5 | L | l | l1 | a | Cr/r | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6,00 | 6,00 | 57 | 13,00 | 20,0 | 0,15 | 0,50 | 5 | HA | Alcrona | F11920G00600001 | ||
| 8,00 | 8,00 | 63 | 19,00 | 25,0 | 0,15 | 0,50 | 5 | HA | Alcrona | F11920G00800001 | ||
| 10,00 | 10,00 | 72 | 22,00 | 30,0 | 0,15 | 0,50 | 5 | HB | Alcrona | F11920G01000001 | ||
| 12,00 | 12,00 | 83 | 26,00 | 36,0 | 0,20 | 0,50 | 5 | HB | Alcrona | F11920G01200001 | ||
| 16,00 | 16,00 | 92 | 32,00 | 42,0 | 0,20 | 1,00 | 5 | HB | Alcrona | F11920G01600001 | ||
| 20,00 | 20,00 | 104 | 38,00 | 52,0 | 0,20 | 1,00 | 5 | HB | Alcrona | F11920G02000001 | ||
| 25,00 | 25,00 | 124 | 45,00 | 65,0 | 0,25 | 1,00 | 5 | HB | Alcrona | F11920G02500001 |
Brochure
Request information
If you have any doubts, need a guide in choosing or simply want to have more information about this tool, please contact us.
