007w

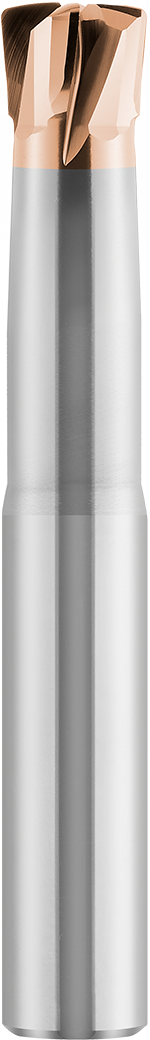

4 flute high feed end mill for roughing and copy milling at high feed
007w
Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Stock
Products :
| D h10 | Cr/r | Rth | l | l1 | d1 | L | d h5 |
Coatings (Balinit®) |
Code | Stock | Order | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3,00 | 0,30 | 0,4 | 3,00 | 10,0 | 2,60 | 57 | 6,00 | Tisaflex | F007W0H00300001 | |||
| 3,00 | 0,30 | 0,4 | 3,00 | 15,0 | 2,60 | 57 | 6,00 | Tisaflex | F007W0H00300002 | |||
| 3,00 | 0,30 | 0,4 | 3,00 | 20,0 | 2,60 | 57 | 6,00 | Tisaflex | F007W0H00300003 | |||
| 3,00 | 0,30 | 0,4 | 3,00 | 25,0 | 2,60 | 57 | 6,00 | Tisaflex | F007W0H00300004 | |||
| 4,00 | 0,50 | 0,6 | 3,00 | 10,0 | 3,60 | 57 | 6,00 | Tisaflex | F007W0H00400001 | |||
| 4,00 | 0,50 | 0,6 | 3,00 | 15,0 | 3,60 | 57 | 6,00 | Tisaflex | F007W0H00400002 | |||
| 4,00 | 0,50 | 0,6 | 3,00 | 20,0 | 3,60 | 57 | 6,00 | Tisaflex | F007W0H00400003 | |||
| 4,00 | 0,50 | 0,6 | 3,00 | 25,0 | 3,60 | 57 | 6,00 | Tisaflex | F007W0H00400004 | |||
| 4,00 | 0,50 | 0,6 | 3,00 | 30,0 | 3,60 | 78 | 6,00 | Tisaflex | F007W0H00400005 | |||
| 4,00 | 0,50 | 0,6 | 3,00 | 35,0 | 3,60 | 78 | 6,00 | Tisaflex | F007W0H00400006 | |||
| 4,00 | 0,50 | 0,6 | 3,00 | 40,0 | 3,60 | 78 | 6,00 | Tisaflex | F007W0H00400007 | |||
| 5,00 | 0,50 | 0,6 | 4,00 | 15,0 | 4,60 | 57 | 6,00 | Tisaflex | F007W0H00500001 | |||
| 5,00 | 0,50 | 0,6 | 4,00 | 20,0 | 4,60 | 57 | 6,00 | Tisaflex | F007W0H00500002 | |||
| 5,00 | 0,50 | 0,6 | 4,00 | 25,0 | 4,60 | 57 | 6,00 | Tisaflex | F007W0H00500003 | |||
| 5,00 | 0,50 | 0,6 | 4,00 | 30,0 | 4,60 | 78 | 6,00 | Tisaflex | F007W0H00500004 | |||
| 5,00 | 0,50 | 0,6 | 4,00 | 35,0 | 4,60 | 78 | 6,00 | Tisaflex | F007W0H00500005 | |||
| 5,00 | 0,50 | 0,6 | 4,00 | 40,0 | 4,60 | 78 | 6,00 | Tisaflex | F007W0H00500006 | |||
| 6,00 | 0,60 | 0,7 | 5,00 | 15,0 | 5,60 | 57 | 6,00 | Tisaflex | F007W0H00600001 | |||
| 6,00 | 0,60 | 0,7 | 5,00 | 20,0 | 5,60 | 57 | 6,00 | Tisaflex | F007W0H00600002 | |||
| 6,00 | 0,60 | 0,7 | 5,00 | 25,0 | 5,60 | 57 | 6,00 | Tisaflex | F007W0H00600003 | |||
| 6,00 | 0,60 | 0,7 | 5,00 | 30,0 | 5,60 | 78 | 6,00 | Tisaflex | F007W0H00600004 | |||
| 6,00 | 0,60 | 0,7 | 5,00 | 35,0 | 5,60 | 78 | 6,00 | Tisaflex | F007W0H00600005 | |||
| 6,00 | 0,60 | 0,7 | 5,00 | 40,0 | 5,60 | 78 | 6,00 | Tisaflex | F007W0H00600006 | |||
| 8,00 | 0,60 | 0,8 | 6,00 | 20,0 | 7,30 | 63 | 8,00 | Tisaflex | F007W0H00800001 | |||
| 8,00 | 0,60 | 0,8 | 6,00 | 25,0 | 7,30 | 63 | 8,00 | Tisaflex | F007W0H00800002 | |||
| 8,00 | 0,60 | 0,8 | 6,00 | 30,0 | 7,30 | 80 | 8,00 | Tisaflex | F007W0H00800003 | |||
| 8,00 | 0,60 | 0,8 | 6,00 | 35,0 | 7,30 | 80 | 8,00 | Tisaflex | F007W0H00800004 | |||
| 8,00 | 0,60 | 0,8 | 6,00 | 40,0 | 7,30 | 80 | 8,00 | Tisaflex | F007W0H00800005 | |||
| 8,00 | 0,60 | 0,8 | 6,00 | 45,0 | 7,30 | 80 | 8,00 | Tisaflex | F007W0H00800006 | |||
| 8,00 | 0,60 | 0,8 | 6,00 | 50,0 | 7,30 | 105 | 8,00 | Tisaflex | F007W0H00800007 | |||
| 8,00 | 0,60 | 0,8 | 6,00 | 55,0 | 7,30 | 105 | 8,00 | Tisaflex | F007W0H00800008 | |||
| 8,00 | 0,60 | 0,8 | 6,00 | 60,0 | 7,30 | 105 | 8,00 | Tisaflex | F007W0H00800009 | |||
| 10,00 | 0,70 | 1,0 | 7,00 | 30,0 | 9,00 | 78 | 10,00 | Tisaflex | F007W0H01000001 | |||
| 10,00 | 0,70 | 1,0 | 7,00 | 35,0 | 9,00 | 78 | 10,00 | Tisaflex | F007W0H01000002 | |||
| 10,00 | 0,70 | 1,0 | 7,00 | 40,0 | 9,00 | 78 | 10,00 | Tisaflex | F007W0H01000003 | |||
| 10,00 | 0,70 | 1,0 | 7,00 | 45,0 | 9,00 | 78 | 10,00 | Tisaflex | F007W0H01000004 | |||
| 10,00 | 0,70 | 1,0 | 7,00 | 50,0 | 9,00 | 105 | 10,00 | Tisaflex | F007W0H01000005 | |||
| 10,00 | 0,70 | 1,0 | 7,00 | 55,0 | 9,00 | 105 | 10,00 | Tisaflex | F007W0H01000006 | |||
| 10,00 | 0,70 | 1,0 | 7,00 | 60,0 | 9,00 | 105 | 10,00 | Tisaflex | F007W0H01000007 | |||
| 12,00 | 0,80 | 1,2 | 8,00 | 35,0 | 11,00 | 83 | 12,00 | Tisaflex | F007W0H01200001 | |||
| 12,00 | 0,80 | 1,2 | 8,00 | 40,0 | 11,00 | 83 | 12,00 | Tisaflex | F007W0H01200002 | |||
| 12,00 | 0,80 | 1,2 | 8,00 | 45,0 | 11,00 | 83 | 12,00 | Tisaflex | F007W0H01200003 | |||
| 12,00 | 0,80 | 1,2 | 8,00 | 50,0 | 11,00 | 105 | 12,00 | Tisaflex | F007W0H01200004 | |||
| 12,00 | 0,80 | 1,2 | 8,00 | 55,0 | 11,00 | 105 | 12,00 | Tisaflex | F007W0H01200005 | |||
| 12,00 | 0,80 | 1,2 | 8,00 | 60,0 | 11,00 | 105 | 12,00 | Tisaflex | F007W0H01200006 | |||
| 12,00 | 0,80 | 1,2 | 8,00 | 65,0 | 11,00 | 105 | 12,00 | Tisaflex | F007W0H01200007 | |||
| 12,00 | 0,80 | 1,2 | 8,00 | 70,0 | 11,00 | 105 | 12,00 | Tisaflex | F007W0H01200008 |
