7725

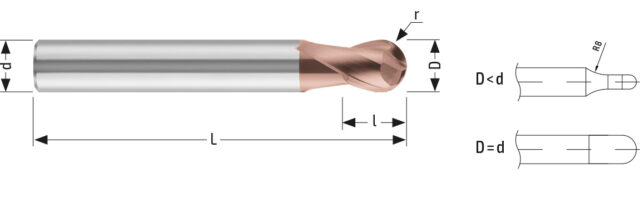

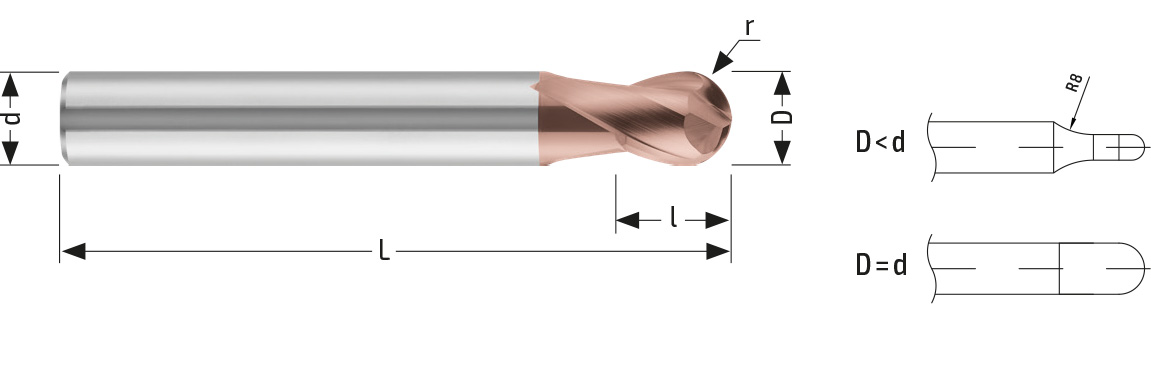

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Stock
Products :
| D +0/-0,02 | Cr/r | l | L | d h5 | Z | Rif. gambo |
Coatings (Balinit®) |
Code | Stock | Order | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3,00 | 1,50 | 3,00 | 57 | 6,00 | 2 | HA | Tisaflex | F77250H00300001 | |||
| 4,00 | 2,00 | 4,00 | 57 | 6,00 | 2 | HA | Tisaflex | F77250H00400001 | |||
| 5,00 | 2,50 | 5,00 | 57 | 6,00 | 2 | HA | Tisaflex | F77250H00500001 | |||
| 6,00 | 3,00 | 6,00 | 57 | 6,00 | 2 | HA | Tisaflex | F77250H00600001 | |||
| 8,00 | 4,00 | 8,00 | 63 | 8,00 | 2 | HA | Tisaflex | F77250H00800001 | |||
| 10,00 | 5,00 | 10,00 | 50 | 10,00 | 2 | HA | Tisaflex | F77250H01000001 | |||
| 10,00 | 5,00 | 10,00 | 78 | 10,00 | 2 | HA | Tisaflex | F77250H01000002 | |||
| 12,00 | 6,00 | 12,00 | 63 | 12,00 | 2 | HA | Tisaflex | F77250H01200001 | |||
| 12,00 | 6,00 | 12,00 | 83 | 12,00 | 2 | HA | Tisaflex | F77250H01200002 |
