816S
2 flute ball nose end mill, regular version
816S

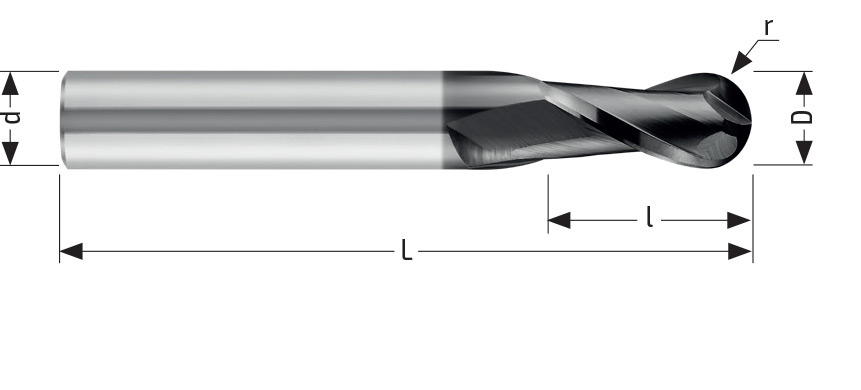

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| D h10 | d h6 | L | l | Cr/r | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|---|
| 4,00 | 4,00 | 50 | 8,00 | 2,00 | 2 | HA | Alcrona | 816S D. 4 | ||
| 5,00 | 5,00 | 50 | 10,00 | 2,50 | 2 | HA | Alcrona | 816S D. 5 | ||
| 6,00 | 6,00 | 57 | 10,00 | 3,00 | 2 | HA | Alcrona | 816S D. 6 | ||
| 6,00 | 6,00 | 57 | 10,00 | 3,00 | 2 | HB | Alcrona | 816SW D. 6 | ||
| 8,00 | 8,00 | 63 | 16,00 | 4,00 | 2 | HA | Alcrona | 816S D. 8 | ||
| 8,00 | 8,00 | 63 | 16,00 | 4,00 | 2 | HB | Alcrona | 816SW D. 8 | ||
| 10,00 | 10,00 | 72 | 19,00 | 5,00 | 2 | HA | Alcrona | 816S D.10 | ||
| 10,00 | 10,00 | 72 | 19,00 | 5,00 | 2 | HB | Alcrona | 816SW D.10 | ||
| 12,00 | 12,00 | 83 | 22,00 | 6,00 | 2 | HA | Alcrona | 816S D.12 | ||
| 12,00 | 12,00 | 83 | 22,00 | 6,00 | 2 | HB | Alcrona | 816SW D.12 | ||
| 14,00 | 14,00 | 83 | 22,00 | 7,00 | 2 | HA | Alcrona | 816S D.14 | ||
| 14,00 | 14,00 | 83 | 22,00 | 7,00 | 2 | HB | Alcrona | 816SW D.14 | ||
| 16,00 | 16,00 | 92 | 26,00 | 8,00 | 2 | HA | Alcrona | 816S D.16 | ||
| 16,00 | 16,00 | 92 | 26,00 | 8,00 | 2 | HB | Alcrona | 816SW D.16 | ||
| 20,00 | 20,00 | 104 | 32,00 | 10,00 | 2 | HA | Alcrona | 816S D.20 | ||
| 20,00 | 20,00 | 104 | 32,00 | 10,00 | 2 | HB | Alcrona | 816SW D.20 |
Brochure
Request information
If you have any doubts, need a guide in choosing or simply want to have more information about this tool, please contact us.
