861S

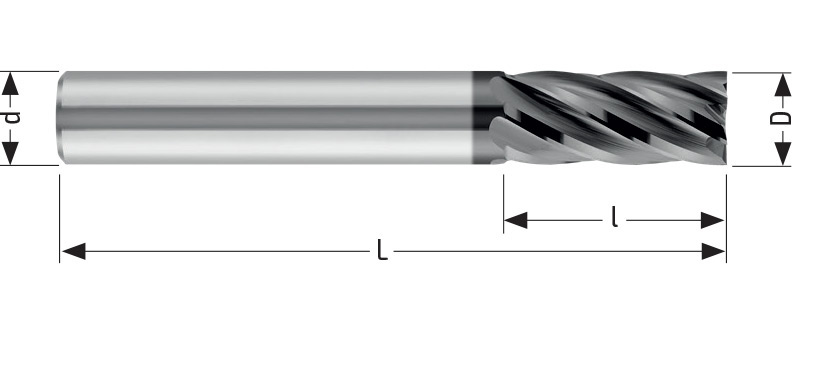

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| D h10 | d h6 | L | l | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|
| 6,00 | 6,00 | 57 | 13,00 | 6 | HA | Alcrona | 861S D. 6 | ||
| 6,00 | 6,00 | 57 | 13,00 | 6 | HB | Alcrona | 861SW D. 6 | ||
| 8,00 | 8,00 | 63 | 19,00 | 6 | HA | Alcrona | 861S D. 8 | ||
| 8,00 | 8,00 | 63 | 19,00 | 6 | HB | Alcrona | 861SW D. 8 | ||
| 10,00 | 10,00 | 72 | 22,00 | 6 | HA | Alcrona | 861S D.10 | ||
| 10,00 | 10,00 | 72 | 22,00 | 6 | HB | Alcrona | 861SW D.10 | ||
| 12,00 | 12,00 | 83 | 26,00 | 6 | HA | Alcrona | 861S D.12 | ||
| 12,00 | 12,00 | 83 | 26,00 | 6 | HB | Alcrona | 861SW D.12 | ||
| 14,00 | 14,00 | 83 | 26,00 | 6 | HA | Alcrona | 861S D.14 | ||
| 14,00 | 14,00 | 83 | 26,00 | 6 | HB | Alcrona | 861SW D.14 | ||
| 16,00 | 16,00 | 92 | 32,00 | 6 | HA | Alcrona | 861S D.16 | ||
| 16,00 | 16,00 | 92 | 32,00 | 6 | HB | Alcrona | 861SW D.16 | ||
| 20,00 | 20,00 | 104 | 38,00 | 8 | HA | Alcrona | 861S D.20 | ||
| 20,00 | 20,00 | 104 | 38,00 | 6 | HB | Alcrona | 861SW D.20 |
