879S

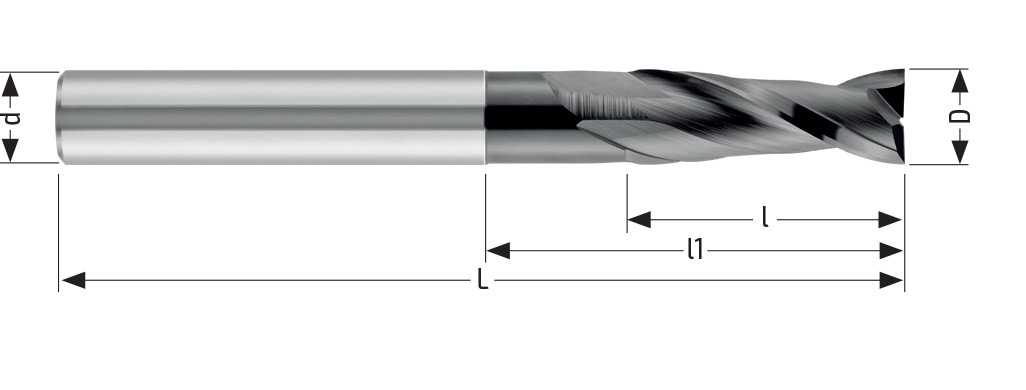

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| D h10 | d h6 | L | l | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|
| 3,00 | 3,00 | 62 | 14,00 | 2 | HA | Alcrona | 879S D. 3 | ||
| 4,00 | 4,00 | 62 | 16,00 | 2 | HA | Alcrona | 879S D. 4 | ||
| 5,00 | 5,00 | 62 | 20,00 | 2 | HA | Alcrona | 879S D. 5 | ||
| 6,00 | 6,00 | 78 | 20,00 | 2 | HA | Alcrona | 879S D. 6 | ||
| 6,00 | 6,00 | 78 | 20,00 | 2 | HB | Alcrona | 879SW D. 6 | ||
| 8,00 | 8,00 | 78 | 25,00 | 2 | HA | Alcrona | 879S D. 8 | ||
| 8,00 | 8,00 | 78 | 25,00 | 2 | HB | Alcrona | 879SW D. 8 | ||
| 10,00 | 10,00 | 105 | 28,00 | 2 | HA | Alcrona | 879S D.10 | ||
| 10,00 | 10,00 | 105 | 28,00 | 2 | HB | Alcrona | 879SW D.10 | ||
| 12,00 | 12,00 | 105 | 32,00 | 2 | HA | Alcrona | 879S D.12 | ||
| 12,00 | 12,00 | 105 | 32,00 | 2 | HB | Alcrona | 879SW D.12 | ||
| 16,00 | 16,00 | 130 | 40,00 | 2 | HA | Alcrona | 879S D.16 | ||
| 16,00 | 16,00 | 130 | 40,00 | 2 | HB | Alcrona | 879SW D.16 |
