352

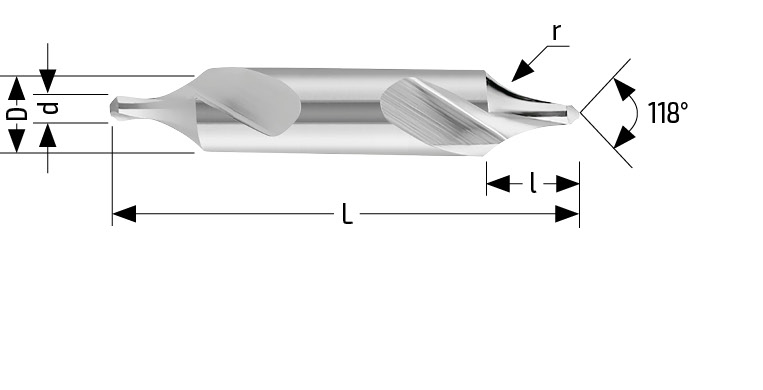

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| D k12 | d | L | l | α | Cr/r | Z |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1,00 | 3,15 | 31 | 3,00 | 118 | 2,90 | 2 | Uncoated | PCC352100 | ||
| 1,25 | 3,15 | 31 | 3,30 | 118 | 3,20 | 2 | Uncoated | PCC352125 | ||
| 1,60 | 4,00 | 35 | 4,20 | 118 | 4,00 | 2 | Uncoated | PCC352160 | ||
| 2,00 | 5,00 | 40 | 5,00 | 118 | 5,00 | 2 | Uncoated | PCC352200 | ||
| 2,50 | 6,30 | 45 | 6,30 | 118 | 6,30 | 2 | Uncoated | PCC352250 | ||
| 3,15 | 8,00 | 50 | 8,00 | 118 | 8,00 | 2 | Uncoated | PCC352315 | ||
| 4,00 | 10,00 | 55 | 10,00 | 118 | 10,00 | 2 | Uncoated | PCC352400 | ||
| 5,00 | 12,50 | 63 | 12,50 | 118 | 12,50 | 2 | Uncoated | PCC352500 | ||
| 6,30 | 16,00 | 71 | 16,00 | 118 | 16,00 | 2 | Uncoated | PCC352630 | ||
| 1,00 | 3,15 | 31 | 3,00 | 118 | 2,90 | 2 | Alcrona | NIG352100 | ||
| 1,25 | 3,15 | 31 | 3,30 | 118 | 3,20 | 2 | Alcrona | NIG352125 | ||
| 1,60 | 4,00 | 35 | 4,20 | 118 | 4,00 | 2 | Alcrona | NIG352160 | ||
| 2,00 | 5,00 | 40 | 5,00 | 118 | 5,00 | 2 | Alcrona | NIG352200 | ||
| 2,50 | 6,30 | 45 | 6,30 | 118 | 6,30 | 2 | Alcrona | NIG352250 | ||
| 3,15 | 8,00 | 50 | 8,00 | 118 | 8,00 | 2 | Alcrona | NIG352315 | ||
| 4,00 | 10,00 | 55 | 10,00 | 118 | 10,00 | 2 | Alcrona | NIG352400 | ||
| 5,00 | 12,50 | 63 | 12,50 | 118 | 12,50 | 2 | Alcrona | NIG352500 | ||
| 6,30 | 16,00 | 71 | 16,00 | 118 | 16,00 | 2 | Alcrona | NIG352630 |
Brochure
Request information
If you have any doubts, need a guide in choosing or simply want to have more information about this tool, please contact us.
