3825
Step drill for core drill sizes for taps with internal coolant
3825

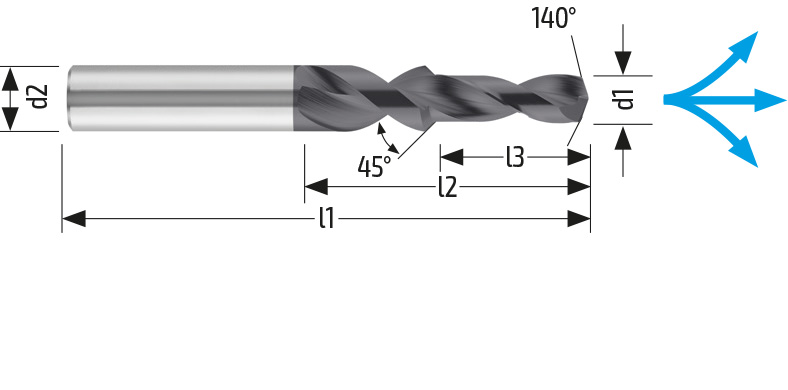

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| d1 m7 | d2 h6 | L | l2 | l3 |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|
| 3,30 | 6,00 | 64 | 23,0 | 10,00 | X-Pro | HMX382510330 | ||
| 3,40 | 6,00 | 64 | 23,0 | 10,00 | X-Pro | HMX382510340 | ||
| 4,20 | 6,00 | 64 | 26,0 | 13,00 | X-Pro | HMX382510420 | ||
| 4,30 | 6,00 | 64 | 26,0 | 13,00 | X-Pro | HMX382510430 | ||
| 5,00 | 8,00 | 74 | 32,0 | 15,00 | X-Pro | HMX382510500 | ||
| 5,10 | 8,00 | 74 | 32,0 | 15,00 | X-Pro | HMX382510510 | ||
| 6,80 | 10,00 | 90 | 42,0 | 20,00 | X-Pro | HMX382510680 | ||
| 6,90 | 10,00 | 90 | 42,0 | 20,00 | X-Pro | HMX382510690 | ||
| 7,90 | 12,00 | 105 | 50,0 | 24,00 | X-Pro | HMX382510790 | ||
| 8,50 | 12,00 | 105 | 51,0 | 25,00 | X-Pro | HMX382510850 | ||
| 8,65 | 12,00 | 105 | 51,0 | 25,00 | X-Pro | HMX382510865 | ||
| 10,25 | 14,00 | 107 | 60,0 | 30,00 | X-Pro | HMX382511025 | ||
| 10,40 | 14,00 | 107 | 60,0 | 30,00 | X-Pro | HMX382511040 | ||
| 10,50 | 14,00 | 120 | 62,0 | 32,00 | X-Pro | HMX382511050 |
