3835
Step drill for core drill sizes for taps with internal coolant
3835

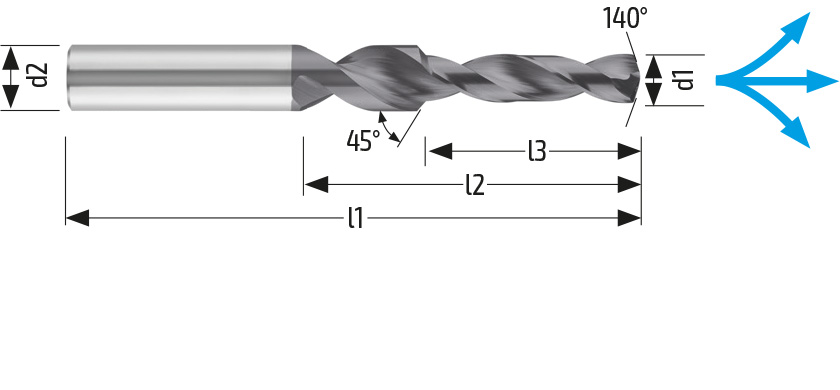

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| d1 m7 | d2 h6 | L | l2 | l3 |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|
| 3,30 | 6,00 | 64 | 27,0 | 14,00 | X-Pro | HMX383510330 | ||
| 3,40 | 6,00 | 64 | 27,0 | 14,00 | X-Pro | HMX383510340 | ||
| 4,20 | 6,00 | 68 | 31,0 | 18,00 | X-Pro | HMX383510420 | ||
| 4,30 | 6,00 | 68 | 31,0 | 18,00 | X-Pro | HMX383510430 | ||
| 5,00 | 8,00 | 78 | 38,0 | 21,00 | X-Pro | HMX383510500 | ||
| 5,10 | 8,00 | 78 | 38,0 | 21,00 | X-Pro | HMX383510510 | ||
| 6,80 | 10,00 | 98 | 50,0 | 28,00 | X-Pro | HMX383510680 | ||
| 6,90 | 10,00 | 98 | 50,0 | 28,00 | X-Pro | HMX383510690 | ||
| 7,90 | 12,00 | 107 | 60,0 | 34,00 | X-Pro | HMX383510790 | ||
| 8,50 | 12,00 | 107 | 61,0 | 35,00 | X-Pro | HMX383510850 | ||
| 8,65 | 12,00 | 107 | 61,0 | 35,00 | X-Pro | HMX383510865 | ||
| 10,25 | 14,00 | 120 | 72,0 | 42,00 | X-Pro | HMX383511025 | ||
| 10,40 | 14,00 | 120 | 72,0 | 42,00 | X-Pro | HMX383511040 | ||
| 10,50 | 14,00 | 127 | 75,0 | 45,00 | X-Pro | HMX383511050 |
