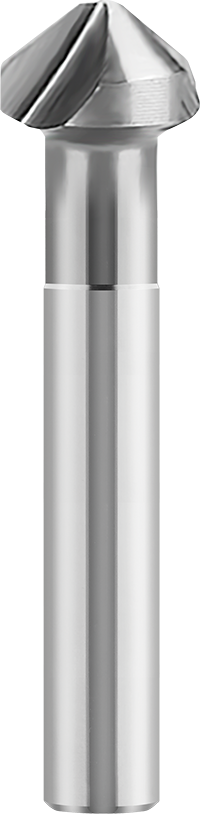

363
Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :

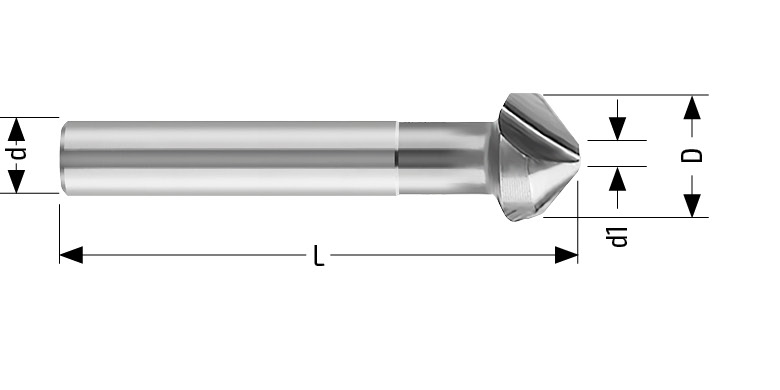

| D Z9 | d | L | α | d1 | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|---|
| 8,00 | 6,00 | 49 | 120 | 2,0 | 3 | FORMA | Uncoated | PSV363080 | ||
| 12,50 | 8,00 | 54 | 120 | 2,8 | 3 | FORMA | Uncoated | PSV363125 | ||
| 16,00 | 10,00 | 57 | 120 | 3,2 | 3 | FORMA | Uncoated | PSV363160 | ||
| 20,00 | 10,00 | 59 | 120 | 3,5 | 3 | FORMA | Uncoated | PSV363200 | ||
| 25,00 | 10,00 | 63 | 120 | 3,8 | 3 | FORMA | Uncoated | PSV363250 | ||
| 8,00 | 6,00 | 49 | 120 | 2,0 | 3 | FORMA | Alcrona | NIG363080 | ||
| 12,50 | 8,00 | 54 | 120 | 2,8 | 3 | FORMA | Alcrona | NIG363125 | ||
| 16,00 | 10,00 | 57 | 120 | 3,2 | 3 | FORMA | Alcrona | NIG363160 | ||
| 20,00 | 10,00 | 59 | 120 | 3,5 | 3 | FORMA | Alcrona | NIG363200 | ||
| 25,00 | 10,00 | 63 | 120 | 3,8 | 3 | FORMA | Alcrona | NIG363250 |
