031F

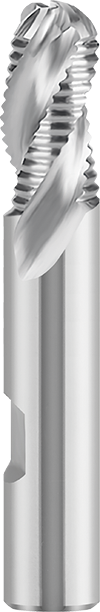

Roughing end mill, regular version










031F
Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
D k12 | d | L | l | Cr/r | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
---|---|---|---|---|---|---|---|---|---|---|
6,00 | 6,00 | 57 | 13,00 | 3,00 | 3 | FORMB | Uncoated | SIL031F06 | ||
8,00 | 10,00 | 69 | 19,00 | 4,00 | 3 | FORMB | Uncoated | SIL031F08 | ||
10,00 | 10,00 | 72 | 22,00 | 5,00 | 3 | FORMB | Uncoated | SIL031F10 | ||
12,00 | 12,00 | 83 | 26,00 | 6,00 | 3 | FORMB | Uncoated | SIL031F12 | ||
14,00 | 12,00 | 83 | 26,00 | 7,00 | 4 | FORMB | Uncoated | SIL031F14 | ||
16,00 | 16,00 | 92 | 32,00 | 8,00 | 4 | FORMB | Uncoated | SIL031F16 | ||
18,00 | 16,00 | 92 | 32,00 | 9,00 | 4 | FORMB | Uncoated | SIL031F18 | ||
20,00 | 20,00 | 104 | 38,00 | 10,00 | 4 | FORMB | Uncoated | SIL031F20 | ||
22,00 | 20,00 | 104 | 38,00 | 11,00 | 4 | FORMB | Uncoated | SIL031F22 | ||
25,00 | 25,00 | 121 | 45,00 | 12,50 | 6 | FORMB | Uncoated | SIL031F25 | ||
30,00 | 25,00 | 121 | 45,00 | 15,00 | 6 | FORMB | Uncoated | SIL031F30 | ||
32,00 | 32,00 | 133 | 53,00 | 16,00 | 6 | FORMB | Uncoated | SIL031F32 | ||
6,00 | 6,00 | 57 | 13,00 | 3,00 | 3 | FORMB | Alcrona | NIG031F06 | ||
8,00 | 10,00 | 69 | 19,00 | 4,00 | 3 | FORMB | Alcrona | NIG031F08 | ||
10,00 | 10,00 | 72 | 22,00 | 5,00 | 3 | FORMB | Alcrona | NIG031F10 | ||
12,00 | 12,00 | 83 | 26,00 | 6,00 | 3 | FORMB | Alcrona | NIG031F12 | ||
14,00 | 12,00 | 83 | 26,00 | 7,00 | 4 | FORMB | Alcrona | NIG031F14 | ||
16,00 | 16,00 | 92 | 32,00 | 8,00 | 4 | FORMB | Alcrona | NIG031F16 | ||
18,00 | 16,00 | 92 | 32,00 | 9,00 | 4 | FORMB | Alcrona | NIG031F18 | ||
20,00 | 20,00 | 104 | 38,00 | 10,00 | 4 | FORMB | Alcrona | NIG031F20 | ||
22,00 | 20,00 | 104 | 38,00 | 11,00 | 4 | FORMB | Alcrona | NIG031F22 | ||
25,00 | 25,00 | 121 | 45,00 | 12,50 | 6 | FORMB | Alcrona | NIG031F25 | ||
30,00 | 25,00 | 121 | 45,00 | 15,00 | 6 | FORMB | Alcrona | NIG031F30 | ||
32,00 | 32,00 | 133 | 53,00 | 16,00 | 6 | FORMB | Alcrona | NIG031F32 |
Request information
If you have any doubts, need a guide in choosing or simply want to have more information about this tool, please contact us.
