052F
Roughing end mill, regular version
SIL
NIG
052F

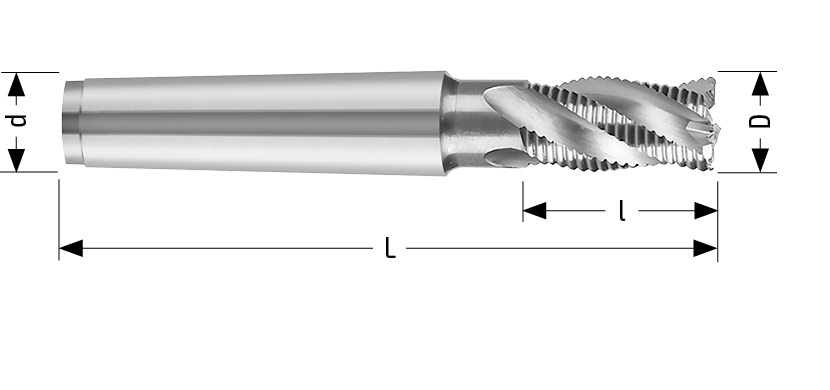

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| D k12 | d | L | l | 45° | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|---|
| 16,00 | 17,78 | 117 | 32,00 | 0,60 | 4 | FORMC | Uncoated | SIL052F16 | ||
| 18,00 | 17,78 | 117 | 32,00 | 0,60 | 4 | FORMC | Uncoated | SIL052F18 | ||
| 20,00 | 17,78 | 123 | 38,00 | 0,70 | 4 | FORMC | Uncoated | SIL052F20 | ||
| 22,00 | 23,83 | 140 | 38,00 | 0,70 | 4 | FORMC | Uncoated | SIL052F22 | ||
| 25,00 | 23,83 | 147 | 45,00 | 0,70 | 4 | FORMC | Uncoated | SIL052F25 | ||
| 28,00 | 23,83 | 147 | 45,00 | 0,90 | 6 | FORMC | Uncoated | SIL052F28 | ||
| 30,00 | 23,83 | 147 | 45,00 | 0,90 | 6 | FORMC | Uncoated | SIL052F30 | ||
| 32,00 | 23,83 | 155 | 53,00 | 1,00 | 6 | FORMC | Uncoated | SIL052F32 | ||
| 36,00 | 31,27 | 178 | 53,00 | 0,90 | 6 | FORMC | Uncoated | SIL052F36 | ||
| 40,00 | 31,27 | 188 | 63,00 | 0,90 | 6 | FORMC | Uncoated | SIL052F40 | ||
| 16,00 | 17,78 | 117 | 32,00 | 0,60 | 4 | FORMC | Alcrona | NIG052F16 | ||
| 18,00 | 17,78 | 117 | 32,00 | 0,60 | 4 | FORMC | Alcrona | NIG052F18 | ||
| 20,00 | 17,78 | 123 | 38,00 | 0,70 | 4 | FORMC | Alcrona | NIG052F20 | ||
| 22,00 | 23,83 | 140 | 38,00 | 0,70 | 4 | FORMC | Alcrona | NIG052F22 | ||
| 25,00 | 23,83 | 147 | 45,00 | 0,70 | 4 | FORMC | Alcrona | NIG052F25 | ||
| 28,00 | 23,83 | 147 | 45,00 | 0,90 | 6 | FORMC | Alcrona | NIG052F28 | ||
| 30,00 | 23,83 | 147 | 45,00 | 0,90 | 6 | FORMC | Alcrona | NIG052F30 | ||
| 32,00 | 23,83 | 155 | 53,00 | 1,00 | 6 | FORMC | Alcrona | NIG052F32 | ||
| 36,00 | 31,27 | 178 | 53,00 | 0,90 | 6 | FORMC | Alcrona | NIG052F36 | ||
| 40,00 | 31,27 | 188 | 63,00 | 0,90 | 6 | FORMC | Alcrona | NIG052F40 |
