737

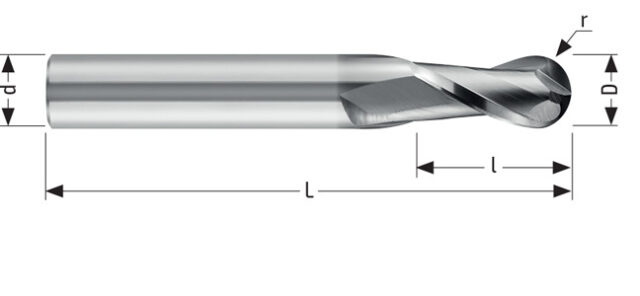

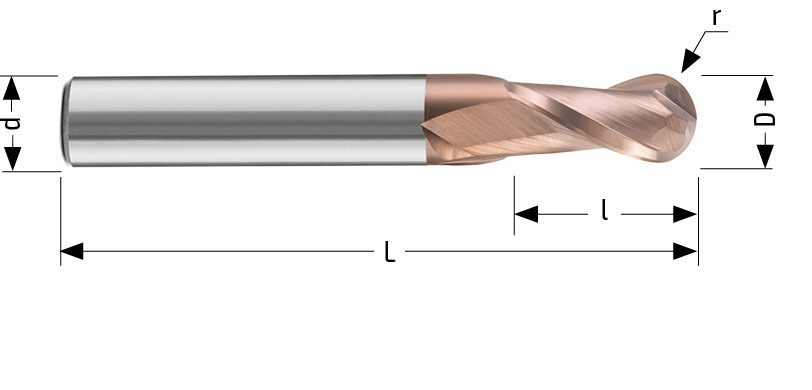

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| D | d h6 | L | l | Cr/r | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1,00 | 6,00 | 53 | 3,00 | 0,50 | 2 | HA | Tisaflex | HMH737010R | ||
| 1,50 | 6,00 | 53 | 4,00 | 0,75 | 2 | HA | Tisaflex | HMH737015R | ||
| 2,00 | 6,00 | 53 | 5,00 | 1,00 | 2 | HA | Tisaflex | HMH737020R | ||
| 2,50 | 6,00 | 53 | 7,00 | 1,25 | 2 | HA | Tisaflex | HMH737025R | ||
| 3,00 | 3,00 | 52 | 8,00 | 1,50 | 2 | HA | Tisaflex | HMH737030 | ||
| 3,00 | 6,00 | 53 | 7,00 | 1,50 | 2 | HA | Tisaflex | HMH737030R | ||
| 4,00 | 4,00 | 55 | 11,00 | 2,00 | 2 | HA | Tisaflex | HMH737040 | ||
| 5,00 | 5,00 | 57 | 13,00 | 2,50 | 2 | HA | Tisaflex | HMH737050 | ||
| 6,00 | 6,00 | 57 | 13,00 | 3,00 | 2 | HA | Tisaflex | HMH737060 | ||
| 8,00 | 8,00 | 69 | 19,00 | 4,00 | 2 | HA | Tisaflex | HMH737080 | ||
| 10,00 | 10,00 | 72 | 22,00 | 5,00 | 2 | HA | Tisaflex | HMH737100 | ||
| 12,00 | 12,00 | 83 | 26,00 | 6,00 | 2 | HA | Tisaflex | HMH737120 | ||
| 16,00 | 16,00 | 92 | 32,00 | 8,00 | 2 | HA | Tisaflex | HMH737160 |
