172
2 flute end mill regular version with reinforced shank
HMG
HMF
HM0
172

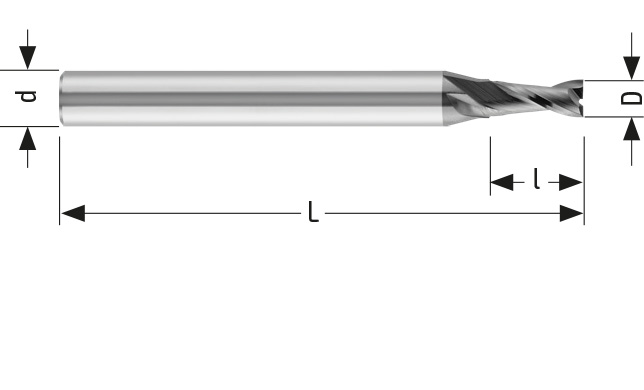

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| D h10 | d h6 | L | l | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|
| 1,00 | 6,00 | 53 | 3,00 | 2 | HA | Alcrona | HMG172010 | ||
| 1,00 | 6,00 | 53 | 4,00 | 2 | HA | Alcrona | HMG172010L | ||
| 1,50 | 6,00 | 53 | 4,50 | 2 | HA | Alcrona | HMG172015 | ||
| 1,50 | 6,00 | 53 | 6,00 | 2 | HA | Alcrona | HMG172015L | ||
| 2,00 | 6,00 | 53 | 6,00 | 2 | HA | Alcrona | HMG172020 | ||
| 2,00 | 6,00 | 53 | 6,00 | 2 | HA | Alcrona | HMG172020L | ||
| 2,50 | 6,00 | 53 | 7,00 | 2 | HA | Alcrona | HMG172025 | ||
| 2,50 | 6,00 | 53 | 9,00 | 2 | HA | Alcrona | HMG172025L | ||
| 3,00 | 6,00 | 53 | 7,00 | 2 | HA | Alcrona | HMG172030 | ||
| 3,00 | 6,00 | 53 | 7,00 | 2 | HA | Alcrona | HMG172030L | ||
| 3,50 | 6,00 | 53 | 7,00 | 2 | HA | Alcrona | HMG172035 | ||
| 4,00 | 6,00 | 53 | 8,00 | 2 | HA | Alcrona | HMG172040 | ||
| 4,00 | 6,00 | 53 | 8,00 | 2 | HA | Alcrona | HMG172040L | ||
| 5,00 | 6,00 | 57 | 10,00 | 2 | HA | Alcrona | HMG172050 | ||
| 1,00 | 6,00 | 53 | 3,00 | 2 | HA | Futura | HMF172010 | ||
| 1,00 | 6,00 | 53 | 4,00 | 2 | HA | Futura | HMF172010L | ||
| 1,50 | 6,00 | 53 | 4,50 | 2 | HA | Futura | HMF172015 | ||
| 1,50 | 6,00 | 53 | 6,00 | 2 | HA | Futura | HMF172015L | ||
| 2,00 | 6,00 | 53 | 6,00 | 2 | HA | Futura | HMF172020 | ||
| 2,00 | 6,00 | 53 | 8,00 | 2 | HA | Futura | HMF172020L | ||
| 2,50 | 6,00 | 53 | 7,00 | 2 | HA | Futura | HMF172025 | ||
| 2,50 | 6,00 | 53 | 9,00 | 2 | HA | Futura | HMF172025L | ||
| 3,00 | 6,00 | 53 | 7,00 | 2 | HA | Futura | HMF172030 | ||
| 3,00 | 6,00 | 53 | 12,00 | 2 | HA | Futura | HMF172030L | ||
| 3,50 | 6,00 | 53 | 7,00 | 2 | HA | Futura | HMF172035 | ||
| 4,00 | 6,00 | 53 | 8,00 | 2 | HA | Futura | HMF172040 | ||
| 4,00 | 6,00 | 53 | 12,00 | 2 | HA | Futura | HMF172040L | ||
| 5,00 | 6,00 | 57 | 10,00 | 2 | HA | Futura | HMF172050 | ||
| 1,00 | 6,00 | 53 | 3,00 | 2 | HA | Uncoated | HM0172010 | ||
| 1,00 | 6,00 | 53 | 4,00 | 2 | HA | Uncoated | HM0172010L | ||
| 1,50 | 6,00 | 53 | 4,50 | 2 | HA | Uncoated | HM0172015 | ||
| 1,50 | 6,00 | 53 | 6,00 | 2 | HA | Uncoated | HM0172015L | ||
| 2,00 | 6,00 | 53 | 6,00 | 2 | HA | Uncoated | HM0172020 | ||
| 2,00 | 6,00 | 53 | 8,00 | 2 | HA | Uncoated | HM0172020L | ||
| 2,50 | 6,00 | 53 | 7,00 | 2 | HA | Uncoated | HM0172025 | ||
| 2,50 | 6,00 | 53 | 9,00 | 2 | HA | Uncoated | HM0172025L | ||
| 3,00 | 6,00 | 53 | 7,00 | 2 | HA | Uncoated | HM0172030 | ||
| 3,00 | 6,00 | 53 | 12,00 | 2 | HA | Uncoated | HM0172030L | ||
| 3,50 | 6,00 | 53 | 7,00 | 2 | HA | Uncoated | HM0172035 | ||
| 4,00 | 6,00 | 53 | 8,00 | 2 | HA | Uncoated | HM0172040 | ||
| 4,00 | 6,00 | 53 | 12,00 | 2 | HA | Uncoated | HM0172040L | ||
| 5,00 | 6,00 | 57 | 10,00 | 2 | HA | Uncoated | HM0172050 |
