747

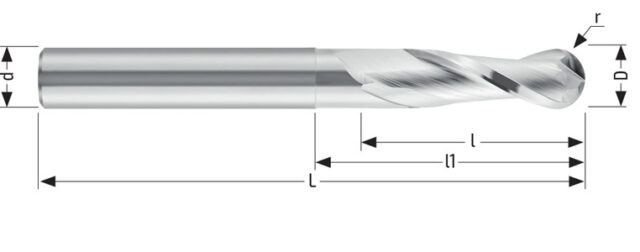

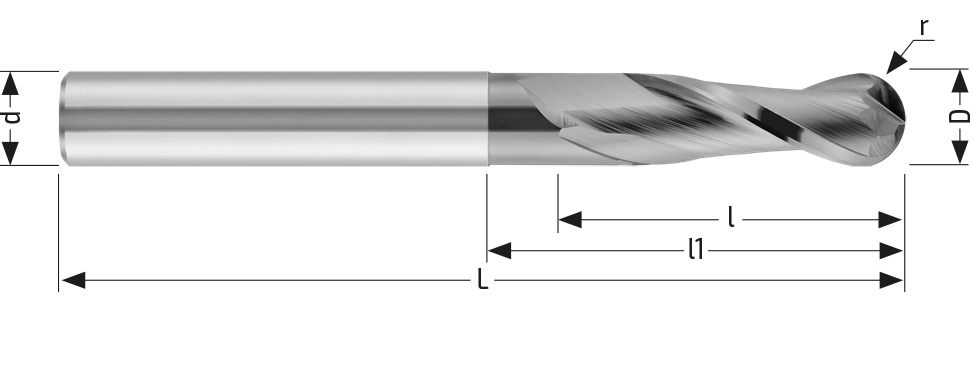

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| D h10 | d h6 | L | l | l1 | a | Cr/r | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4,00 | 4,00 | 62 | 16,00 | — | — | 2,00 | 2 | HA | Alcrona | HMG747040 | ||
| 5,00 | 5,00 | 62 | 20,00 | — | — | 2,50 | 2 | HA | Alcrona | HMG747050 | ||
| 6,00 | 6,00 | 78 | 20,00 | 30,0 | 0,15 | 3,00 | 2 | HA | Alcrona | HMG747060 | ||
| 8,00 | 8,00 | 78 | 25,00 | 35,0 | 0,15 | 4,00 | 2 | HA | Alcrona | HMG747080 | ||
| 10,00 | 10,00 | 105 | 28,00 | 48,0 | 0,15 | 5,00 | 2 | HA | Alcrona | HMG747100 | ||
| 12,00 | 12,00 | 105 | 32,00 | 52,0 | 0,20 | 6,00 | 2 | HA | Alcrona | HMG747120 | ||
| 16,00 | 16,00 | 130 | 40,00 | 60,0 | 0,20 | 8,00 | 2 | HA | Alcrona | HMG747160 | ||
| 4,00 | 4,00 | 62 | 16,00 | — | — | 2,00 | 2 | HA | Futura | HMF747040 | ||
| 5,00 | 5,00 | 62 | 20,00 | — | — | 2,50 | 2 | HA | Futura | HMF747050 | ||
| 6,00 | 6,00 | 78 | 20,00 | 30,0 | 0,15 | 3,00 | 2 | HA | Futura | HMF747060 | ||
| 8,00 | 8,00 | 78 | 25,00 | 35,0 | 0,15 | 4,00 | 2 | HA | Futura | HMF747080 | ||
| 10,00 | 10,00 | 105 | 28,00 | 48,0 | 0,15 | 5,00 | 2 | HA | Futura | HMF747100 | ||
| 12,00 | 12,00 | 105 | 32,00 | 52,0 | 0,20 | 6,00 | 2 | HA | Futura | HMF747120 | ||
| 16,00 | 16,00 | 130 | 40,00 | 60,0 | 0,20 | 8,00 | 2 | HA | Futura | HMF747160 | ||
| 4,00 | 4,00 | 62 | 16,00 | — | — | 2,00 | 2 | HA | Uncoated | HM0747040 | ||
| 5,00 | 5,00 | 62 | 20,00 | — | — | 2,50 | 2 | HA | Uncoated | HM0747050 | ||
| 6,00 | 6,00 | 78 | 20,00 | 30,0 | 0,15 | 3,00 | 2 | HA | Uncoated | HM0747060 | ||
| 8,00 | 8,00 | 78 | 25,00 | 35,0 | 0,15 | 4,00 | 2 | HA | Uncoated | HM0747080 | ||
| 10,00 | 10,00 | 105 | 28,00 | 48,0 | 0,15 | 5,00 | 2 | HA | Uncoated | HM0747100 | ||
| 12,00 | 12,00 | 105 | 32,00 | 52,0 | 0,20 | 6,00 | 2 | HA | Uncoated | HM0747120 | ||
| 16,00 | 16,00 | 130 | 40,00 | 60,0 | 0,20 | 8,00 | 2 | HA | Uncoated | HM0747160 |
