4038A

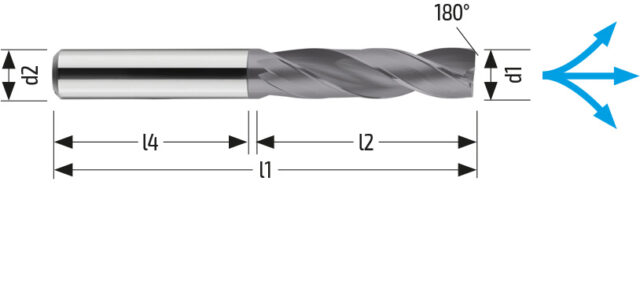

Диаметр режущей части
Угловой радиус
Длина режущей части
Длина обнижения
Общая длина
Продукты :
| d1 m7 | d2 h6 | lu | l2 | l4 | l1 |
Покрытия (Balinit®) |
Код | Заказать | |
|---|---|---|---|---|---|---|---|---|---|
| 3,00 | 6,00 | 14,00 | 20,0 | 36,0 | 62 | Latuma | HMC4038A030 | ||
| 3,10 | 6,00 | 14,00 | 20,0 | 36,0 | 62 | Latuma | HMC4038A031 | ||
| 3,20 | 6,00 | 14,00 | 20,0 | 36,0 | 62 | Latuma | HMC4038A032 | ||
| 3,30 | 6,00 | 14,00 | 20,0 | 36,0 | 62 | Latuma | HMC4038A033 | ||
| 3,40 | 6,00 | 14,00 | 20,0 | 36,0 | 62 | Latuma | HMC4038A034 | ||
| 3,50 | 6,00 | 14,00 | 20,0 | 36,0 | 62 | Latuma | HMC4038A035 | ||
| 3,60 | 6,00 | 14,00 | 20,0 | 36,0 | 62 | Latuma | HMC4038A036 | ||
| 3,70 | 6,00 | 14,00 | 20,0 | 36,0 | 62 | Latuma | HMC4038A037 | ||
| 3,80 | 6,00 | 17,00 | 24,0 | 36,0 | 66 | Latuma | HMC4038A038 | ||
| 3,90 | 6,00 | 17,00 | 24,0 | 36,0 | 66 | Latuma | HMC4038A039 | ||
| 4,00 | 6,00 | 17,00 | 24,0 | 36,0 | 66 | Latuma | HMC4038A040 | ||
| 4,10 | 6,00 | 17,00 | 24,0 | 36,0 | 66 | Latuma | HMC4038A041 | ||
| 4,20 | 6,00 | 17,00 | 24,0 | 36,0 | 66 | Latuma | HMC4038A042 | ||
| 4,30 | 6,00 | 17,00 | 24,0 | 36,0 | 66 | Latuma | HMC4038A043 | ||
| 4,40 | 6,00 | 17,00 | 24,0 | 36,0 | 66 | Latuma | HMC4038A044 | ||
| 4,50 | 6,00 | 17,00 | 24,0 | 36,0 | 66 | Latuma | HMC4038A045 | ||
| 4,60 | 6,00 | 17,00 | 24,0 | 36,0 | 66 | Latuma | HMC4038A046 | ||
| 4,70 | 6,00 | 17,00 | 24,0 | 36,0 | 66 | Latuma | HMC4038A047 | ||
| 4,80 | 6,00 | 20,00 | 28,0 | 36,0 | 66 | Latuma | HMC4038A048 | ||
| 4,90 | 6,00 | 20,00 | 28,0 | 36,0 | 66 | Latuma | HMC4038A049 | ||
| 5,00 | 6,00 | 20,00 | 28,0 | 36,0 | 66 | Latuma | HMC4038A050 | ||
| 5,10 | 6,00 | 20,00 | 28,0 | 36,0 | 66 | Latuma | HMC4038A051 | ||
| 5,20 | 6,00 | 20,00 | 28,0 | 36,0 | 66 | Latuma | HMC4038A052 | ||
| 5,30 | 6,00 | 20,00 | 28,0 | 36,0 | 66 | Latuma | HMC4038A053 | ||
| 5,40 | 6,00 | 20,00 | 28,0 | 36,0 | 66 | Latuma | HMC4038A054 | ||
| 5,50 | 6,00 | 20,00 | 28,0 | 36,0 | 66 | Latuma | HMC4038A055 | ||
| 5,60 | 6,00 | 20,00 | 28,0 | 36,0 | 66 | Latuma | HMC4038A056 | ||
| 5,70 | 6,00 | 20,00 | 28,0 | 36,0 | 66 | Latuma | HMC4038A057 | ||
| 5,80 | 6,00 | 20,00 | 28,0 | 36,0 | 66 | Latuma | HMC4038A058 | ||
| 5,90 | 6,00 | 20,00 | 28,0 | 36,0 | 66 | Latuma | HMC4038A059 | ||
| 6,00 | 6,00 | 20,00 | 28,0 | 36,0 | 66 | Latuma | HMC4038A060 | ||
| 6,10 | 8,00 | 24,00 | 34,0 | 36,0 | 79 | Latuma | HMC4038A061 | ||
| 6,20 | 8,00 | 24,00 | 34,0 | 36,0 | 79 | Latuma | HMC4038A062 | ||
| 6,30 | 8,00 | 24,00 | 34,0 | 36,0 | 79 | Latuma | HMC4038A063 | ||
| 6,40 | 8,00 | 24,00 | 34,0 | 36,0 | 79 | Latuma | HMC4038A064 | ||
| 6,50 | 8,00 | 24,00 | 34,0 | 36,0 | 79 | Latuma | HMC4038A065 | ||
| 6,60 | 8,00 | 24,00 | 34,0 | 36,0 | 79 | Latuma | HMC4038A066 | ||
| 6,70 | 8,00 | 24,00 | 34,0 | 36,0 | 79 | Latuma | HMC4038A067 | ||
| 6,80 | 8,00 | 24,00 | 34,0 | 36,0 | 79 | Latuma | HMC4038A068 | ||
| 6,90 | 8,00 | 24,00 | 34,0 | 36,0 | 79 | Latuma | HMC4038A069 | ||
| 7,00 | 8,00 | 24,00 | 34,0 | 36,0 | 79 | Latuma | HMC4038A070 | ||
| 7,10 | 8,00 | 29,00 | 41,0 | 36,0 | 79 | Latuma | HMC4038A071 | ||
| 7,20 | 8,00 | 29,00 | 41,0 | 36,0 | 79 | Latuma | HMC4038A072 | ||
| 7,30 | 8,00 | 29,00 | 41,0 | 36,0 | 79 | Latuma | HMC4038A073 | ||
| 7,40 | 8,00 | 29,00 | 41,0 | 36,0 | 79 | Latuma | HMC4038A074 | ||
| 7,50 | 8,00 | 29,00 | 41,0 | 36,0 | 79 | Latuma | HMC4038A075 | ||
| 7,60 | 8,00 | 29,00 | 41,0 | 36,0 | 79 | Latuma | HMC4038A076 | ||
| 7,70 | 8,00 | 29,00 | 41,0 | 36,0 | 79 | Latuma | HMC4038A077 | ||
| 7,80 | 8,00 | 29,00 | 41,0 | 36,0 | 79 | Latuma | HMC4038A078 | ||
| 7,90 | 8,00 | 29,00 | 41,0 | 36,0 | 79 | Latuma | HMC4038A079 |
